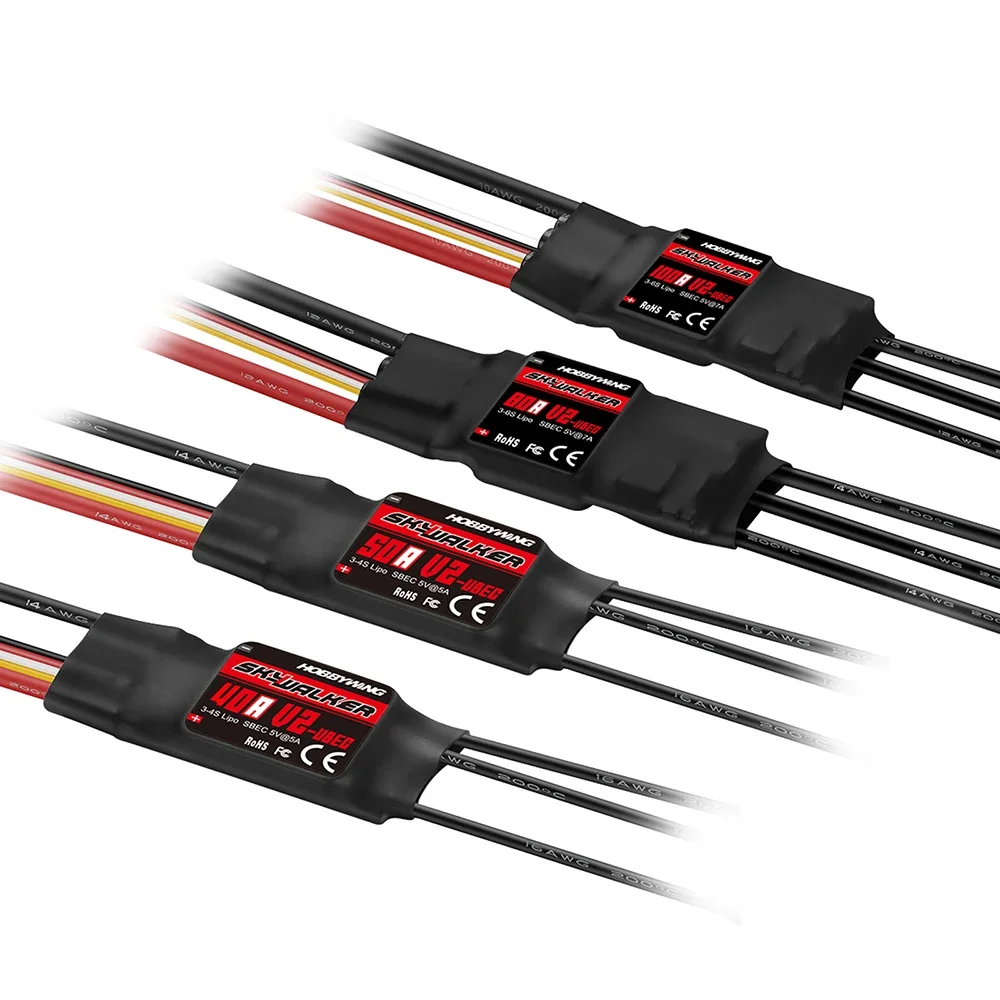

Hobbywing Skywalker 20a/30a/40/50a/60/80a/100a/contrôleur de vitesse Esc sans brosse avec Ubec pour hélicoptère d’avion quadrirotor Rc Fpv

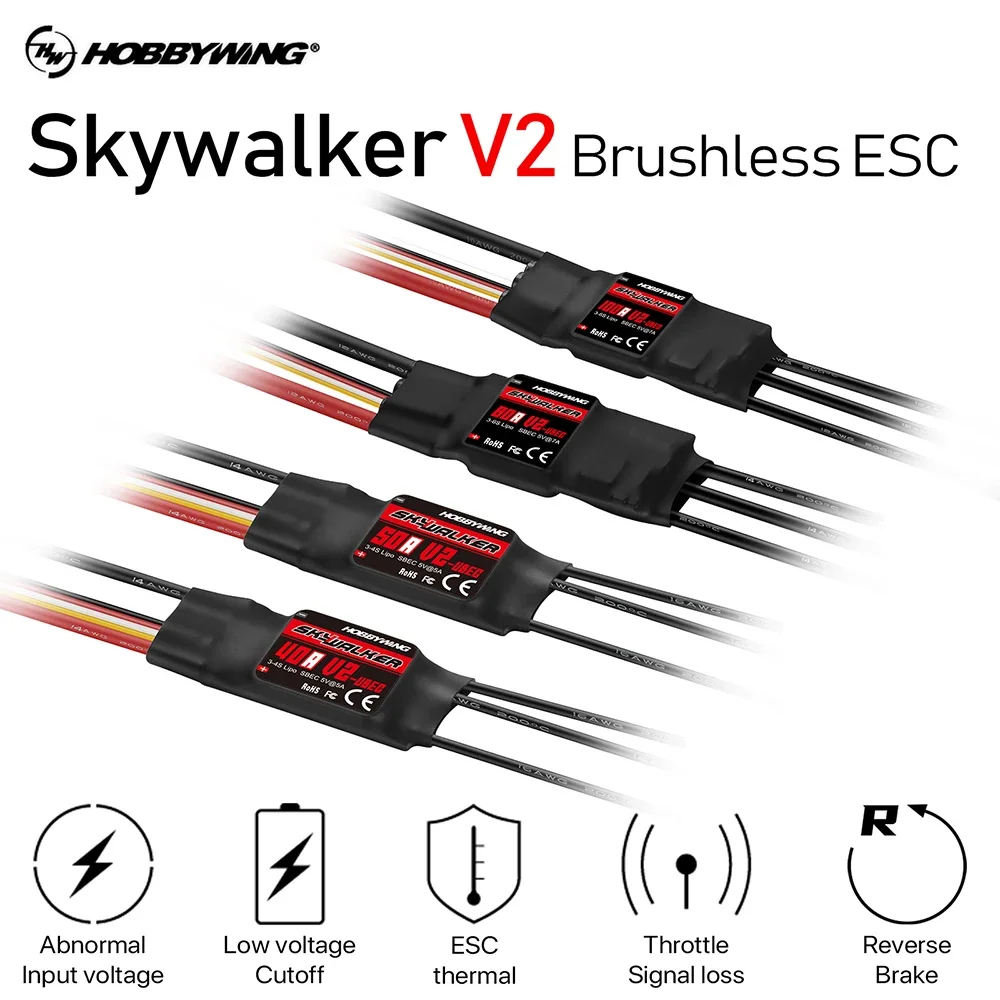

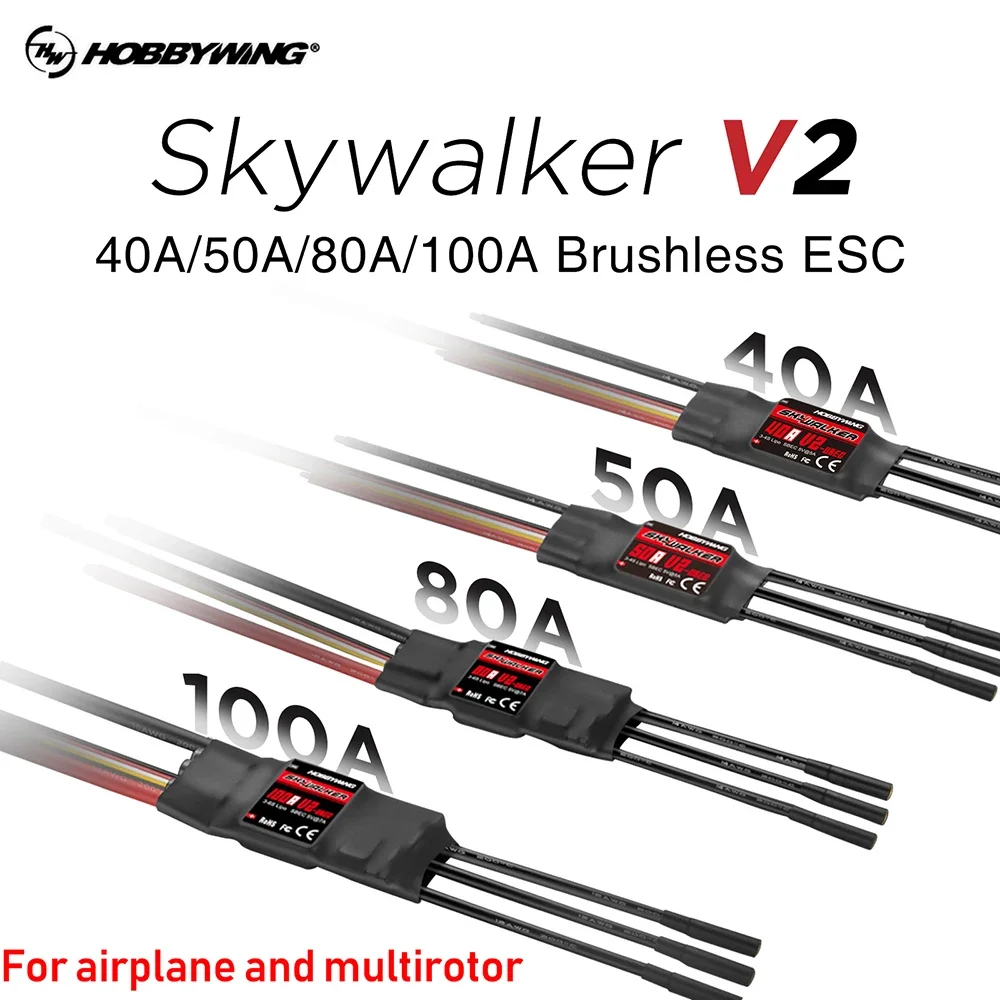

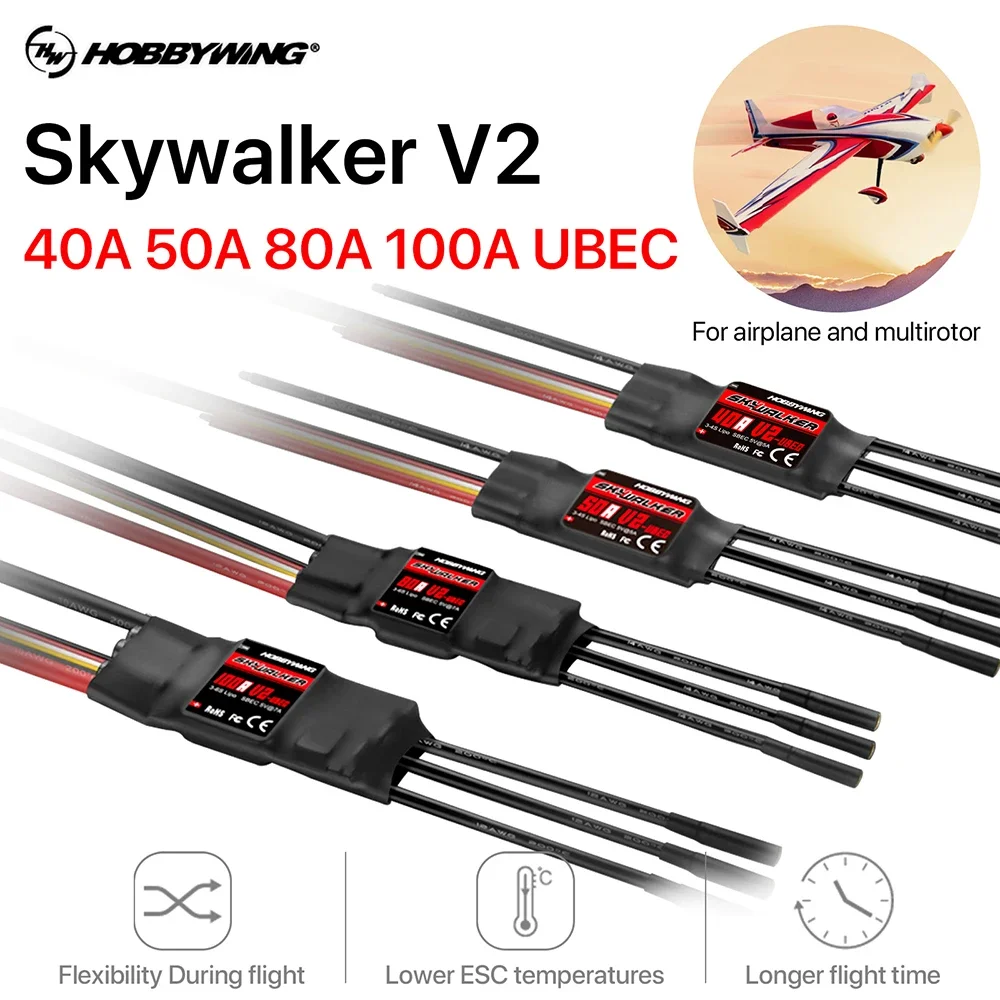

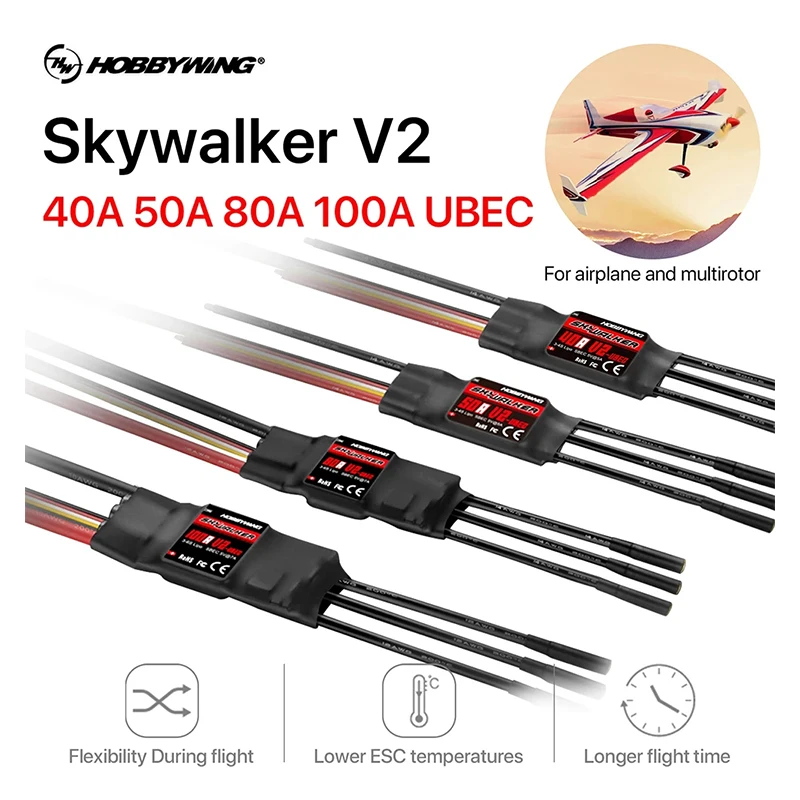

Hobbywing Skywalker V2 15A 20A 30A 40A 50A 60A 80AESC Speed Controler

Skywalker 15A V2: with 2.0mm banana plug

Skywalker 20A 30A 40A 50A V2: with 3.5mm banana plug

Skywalker 60A 80A 100A: with 4.0mm banana plug

20A:

Model: Skywalker-20A

Continuous Current: 20A

Burst Current (>10s): 25A

BEC Mode: Linear

BEC Output: 5V2A

BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)

Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)

Net Weight: 19g

Dimension (L x W x H): 42 x 25 x 8mm

Cable length: 25cm

Package size: 12.5 * 11 * 2.5cm

30A:

Constant Current: 30A

Peak Current:40A(10s)

Voltage: 2-3S lixx

BEC: Yes

BEC Output: 5V/2A

Color: black

Programmable:Yes

Size: 70*25*8mm (not including cable length)

Net Weight:38g

40A V2:

Model: Skywalker-40A V2 UBEC

Continuous Current: 40A

Burst Current (>10s): 55A

BEC Mode: Linear

BEC Output: 5V5A

BEC Output Capability: 5 Servos (3S Lipo) / 4 Servos (3S Lipo)

Battery Cell: 3-4S (Lipo)

Net Weight: 35g

Dimension (L x W x H): 68 x 25 x 8mm

Backward thrust:YES

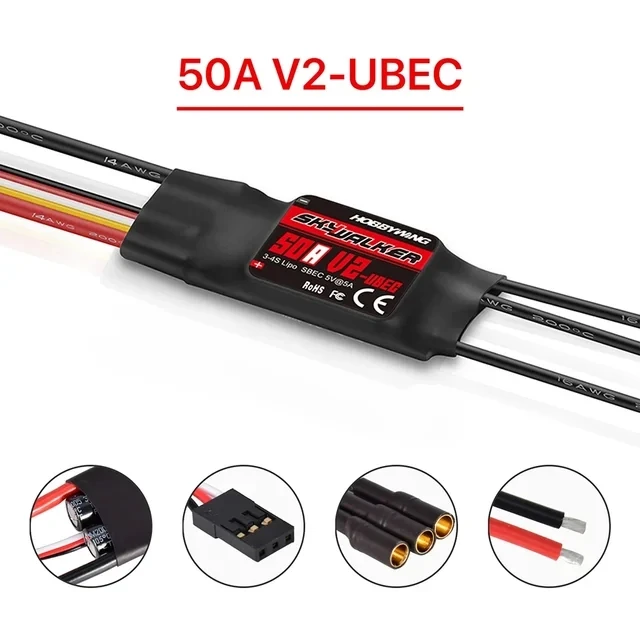

50A V2:

COntinuous output: 50A V2 UBEC

Burst current: 60A@10S

Power input: 3-4S Lixx/11-12S Nixx

5V/5A BEC output, switch mode

Refresh rate: 50Hz-432Hz

Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min

Dimension: 68*25*12mm

Weight: 43g

Backward thrust:YES

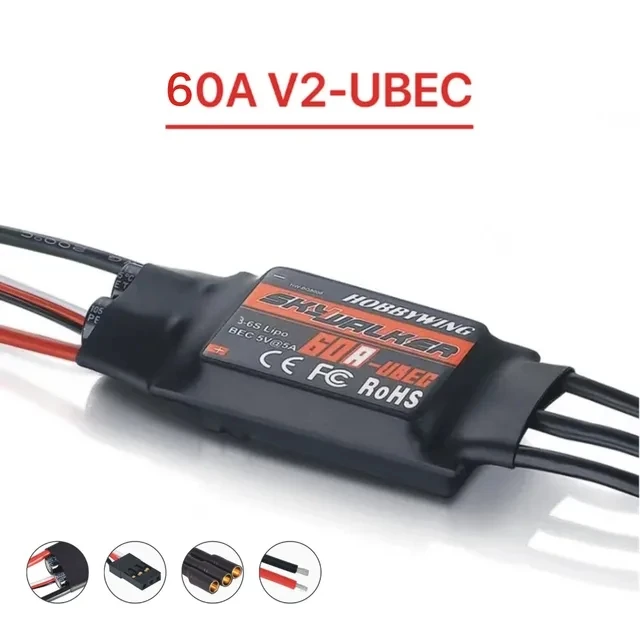

60A V2:

Item Name: Hobbywing SkyWalker 60A UBEC ESC

Constant Current: 60A

Burst Current (>10s): 80A

BEC Mode: switch mode

BEC Output: 5V at 3A

Battery Cell: 3-6 cells Lipo,or 11-18 cells NiHH

Refresh Rate: 50Hz-432Hz

Dimension: 77 x 35 x 14 mm

Weight: 63g

Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor)

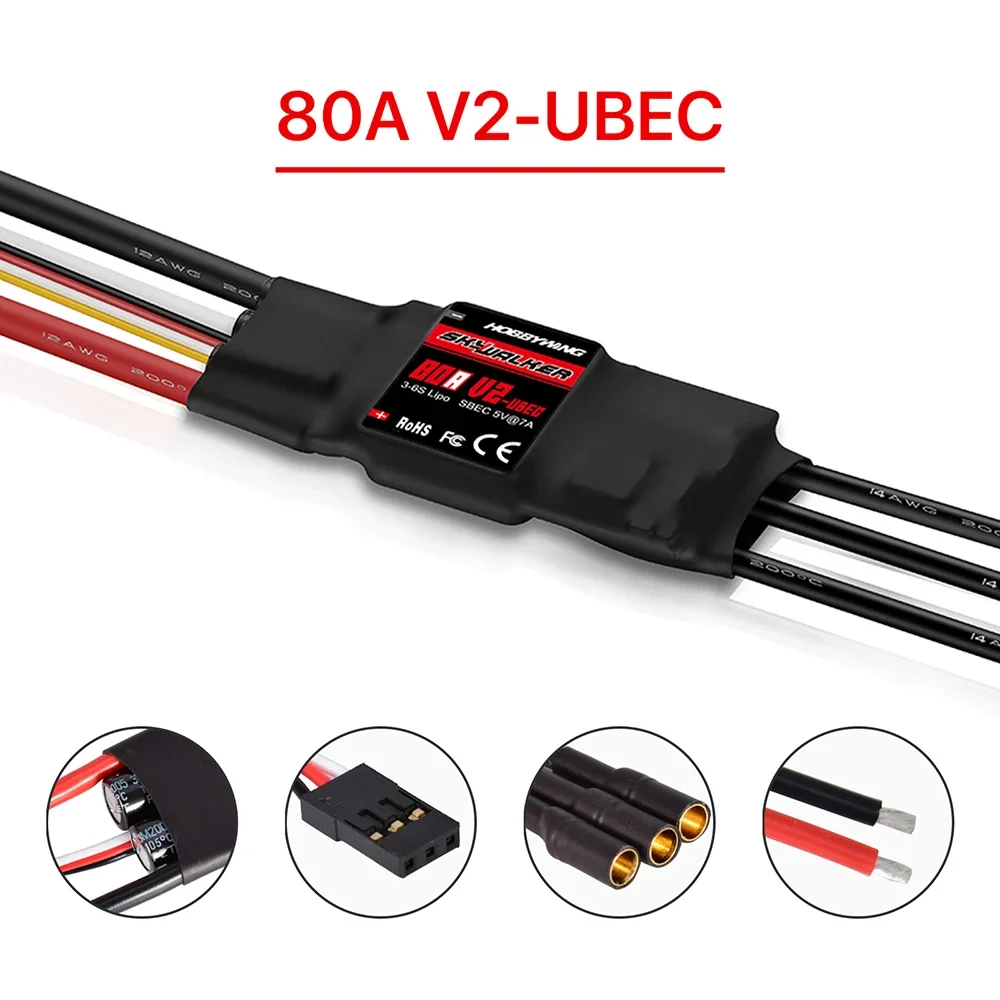

80A V2:

Item Name: SkyWalker 80A V2 UBEC

Type: Brushless ESC,Regular voltage

Cont./Peak Current: 80A/100A

Input: 3-6S LiPo,11.1-18s Ni-MH

BEC Output: Switch Mode–5V,7A

Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1

Output Wires: Black-14AWG-100mm*3

Input Connectors: NO

Output Connectors: NO

ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire)

Firmware Upgrade: Not Supported

Size: 85.0×36.0x9.0mm

Weight: 79g

Backward thrust:YES

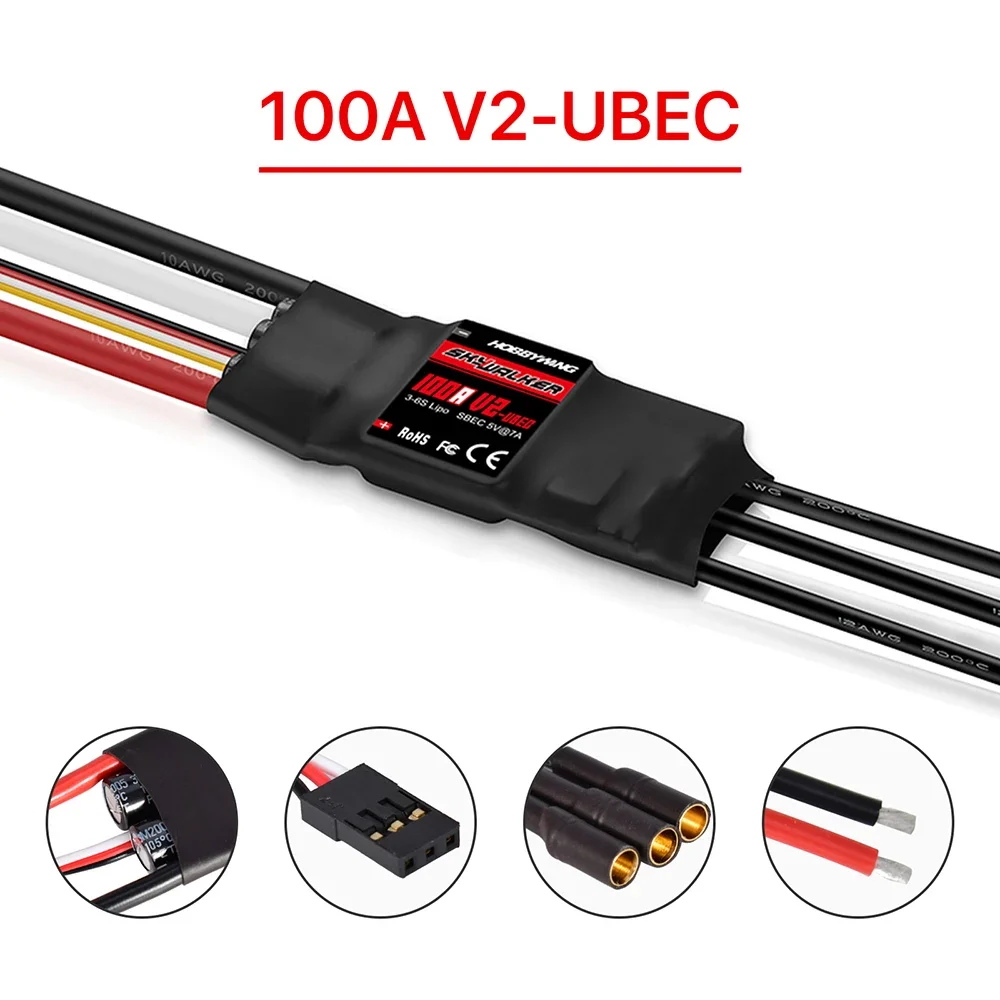

100A V2:

Item Name: SkyWalker 100A V2 UBEC

Type: Brushless ESC,Regular voltage

Cont./Peak Current: 100A/120A

Input: 3-6S LiPo,11.1-18s Ni-MH

BEC Output: Switch Mode–5V,7A

Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1

Output Wires: Black-14AWG-100mm*3

Input Connectors: NO

Output Connectors: NO

ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire)

Firmware Upgrade: Not Supported

Size: 85.0×36.0x9.0mm

Weight: 92g

Backward thrust:YES

Package includes:

1pcs ESC
